Teltonika EVC2 · 22 kW
Developed and manufactured in the European Union. A 22 kW charger with an attached 5 m cable, app control and load balancing — in graphite, white or Kebony® wood.
European development and manufacturing
EVC2 is developed and manufactured by Teltonika in the European Union. Production takes place in Lithuania, with quality checks at every step. The compact case includes temperature sensors, voltage and current monitoring, 6 mA DC residual current detection and an energy meter with deviation below 1%. Standby consumption is 3 W.
Design

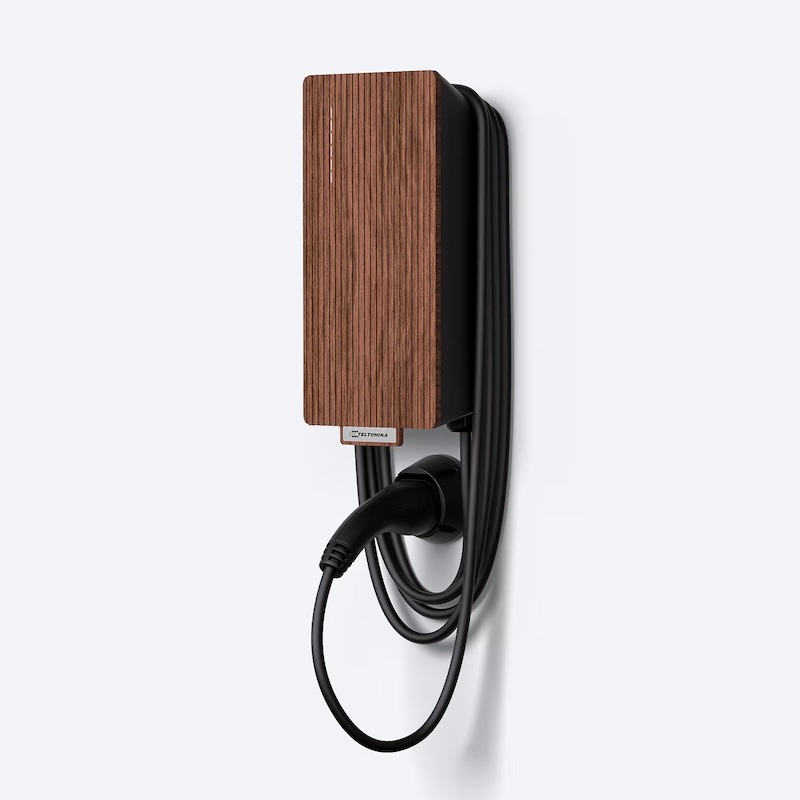

The EVC2 range has five interchangeable front plates, including natural Kebony® wood. Choose graphite, white or wood in our configurator. You can replace the plate after installation; ask us about availability of the other finishes.
Load management
When your home uses more electricity, EVC2 can reduce the car’s charging power and increase it as capacity becomes available. It supports static, dynamic and multi-device load balancing. Dynamic control needs a compatible external meter or sensors and configuration by an electrician.
Single or three phase
No three-phase supply? EVC2 also runs on a single phase at up to 32 A, giving up to 7.4 kW, roughly three times faster than a wall socket. If you upgrade to three phase later, there's no need for a new charger: the same EVC2 will charge at up to 22 kW. Maximum power also depends on the car's onboard charger.
Solar energy
Put surplus solar generation into your car. Solar only waits for enough solar power, while ECO and ECO+ can supplement it with grid energy according to your settings. A compatible external meter must be connected to the charger and configured for solar charging.
App and access
Set charging times and review your statistics in the Teltonika Energy app. Bluetooth provides local access, and NFC cards let you choose who can charge. Wi-Fi, Ethernet and optional 4G provide connectivity to an OCPP 1.6J management platform.
Durability
Rain, cold or heat: IP56 dust and water protection, IK10 impact resistance and operation from -30 to +50 °C. Made in the EU, with a 36-month standard warranty and an extension option up to 60 months.
Installation
The supply cable enters from the back or bottom to suit the site. The case accepts cables up to 25 mm in diameter and conductors up to 10 mm². Wall mounting is standard; separate poles are available for one or several chargers on an open car park.
Can't find an answer? Write to support@finescharging.com
22 kW needs a three-phase 400 V supply with 32 A per phase. On a smaller supply you limit the power in the settings (6 to 32 A). The real speed also depends on the car’s on-board charger — many models take up to 11 kW on AC.
Speed depends on how many kW the car accepts on AC, on the home’s supply, and on battery temperature and charge level. Check your car’s specifications for its maximum AC charging power.
Use Bluetooth for local control from your phone. Connecting to an OCPP platform needs internet over Wi-Fi, Ethernet or 4G on an equipped version. Mobile connectivity is optional; check the configuration and SIM service with us.
Yes. Turn on authorisation and charging starts only from the app or with an NFC card. You can add several cards, like keys for family or colleagues.
Your electrician sets the current limit to suit the supply and protective devices. Automatically adjusting power as other appliances draw electricity requires a compatible external meter or sensors and configuration of dynamic load balancing.
Set a schedule in the app — separately for weekdays and weekends. When the car is plugged in, charging starts and stops on its own according to the schedule.
We call within 2 working days to check your fuse board and book a date. A qualified electrician installs the charger, including cable and protection in the board up to the standard length. Anything more is quoted before work starts.
Yes. The front plate is replaceable, so you can change the colour after installation. Write to us and we will check availability.
Yes, with a compatible external meter and solar charging configured. Solar only waits for sufficient surplus, while ECO and ECO+ can combine solar and grid power. The meter and required accessories are specified separately.
Send us a request and we will prepare a quote for the quantity and installation.
Delivery in 1–3 working days · optional installation · 14-day right of withdrawal
